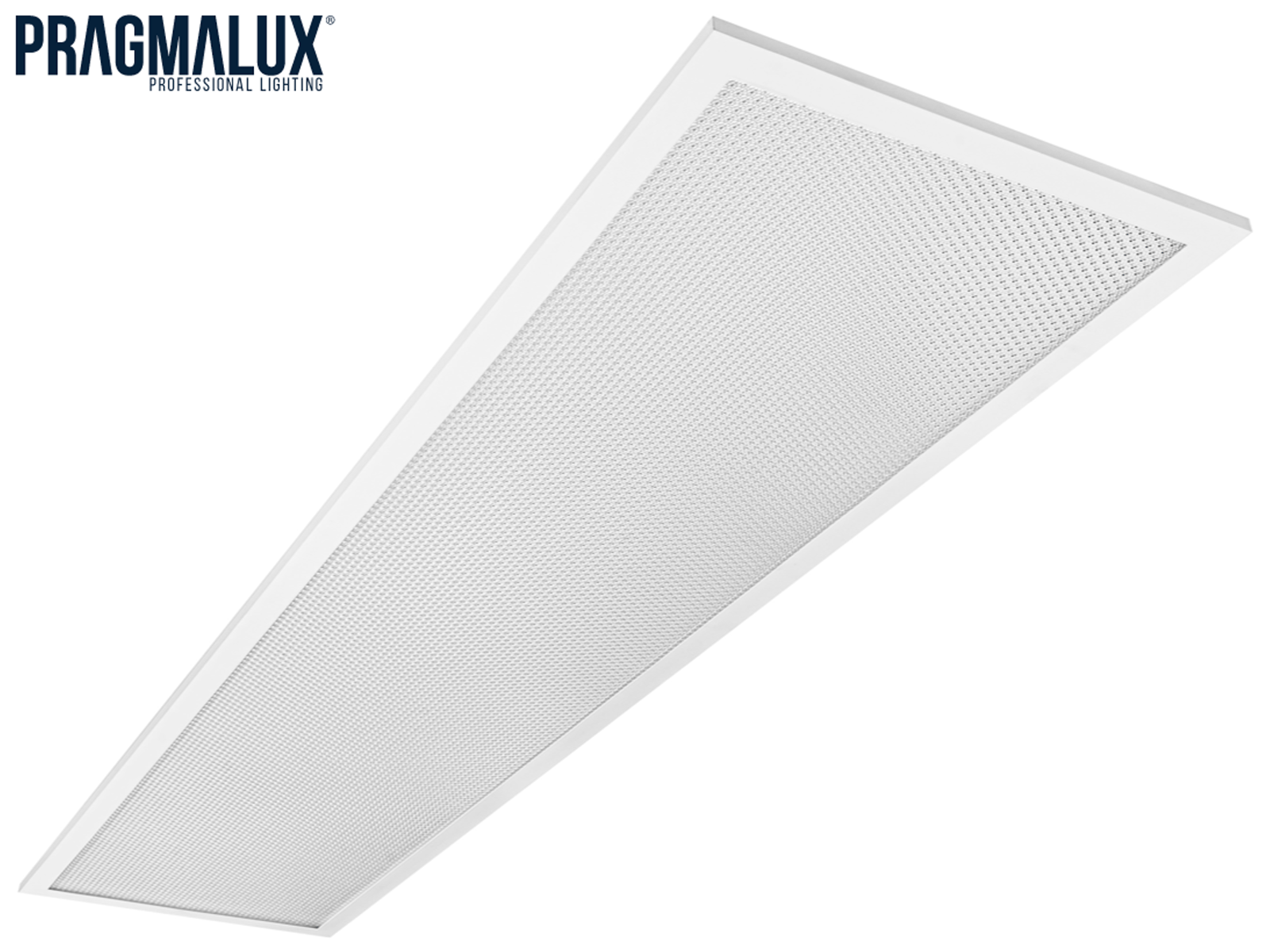

Pragmalux Sigma G2 LED panel (back-lit) 30x120 NW+WW

Effekt (P):	26-40W, 38W
Lysfarve:	3.000 eller 4.000 kelvin, 3.000+4.000 kelvin
Lysstyrke:	3.200 (3.000 kelvin) eller 5.100 (4.000 kelvin) lumen, 120~130 lumen/watt
Lysvinkel:	90°
Farvegengivelse:	CRI>89, CRI>85
Blænde:	UGR<19
Dæmpbar:	Ja(DALI, 1-10V, PUSH dæmpbar samt alm. driver kan tilkøbes), Ja (ved tilkøb af dæmpbar driver), Ja, DALI-2/PUSH (via driver), Ja, TRIAC (via driver)
MacAdam:	SDCM<3
Spænding (U):	85-265V AC
Gennemfortrådet:	Ja, sløjfebox på driver, Ja, sløjfning i driver
Levetid:	L80B10=106.000 timer, L80B10=106.000 timer (panel)
Tæthedsgrad:	IP44, IP44 (panel)
Beskyttelsesgrad:	IK02
Produktfarve:	Hvid panelramme og omskifter, Hvid panelramme/sort driver
Mål:	295x1195 mm. / højde 34 mm., 1195x295x34mm
Medfølger:	Panel med flimmerfri, effekt-justerbar driver 26-40W
Garanti:	7 år, 7 år panel/3 år driver, 7 år panel/5 år driver
Kolli-antal:	5
EAN:	8720391000947, 5708829670767, 5708829670859, 5708829670842, 5708829670866
Varetype:	Sortimentsvare (C)

Pragmalux Sigma G2 LED panel 30x120 med CCT farveskift (3000K+4000K) med inkluderet driver og sløjfebox
